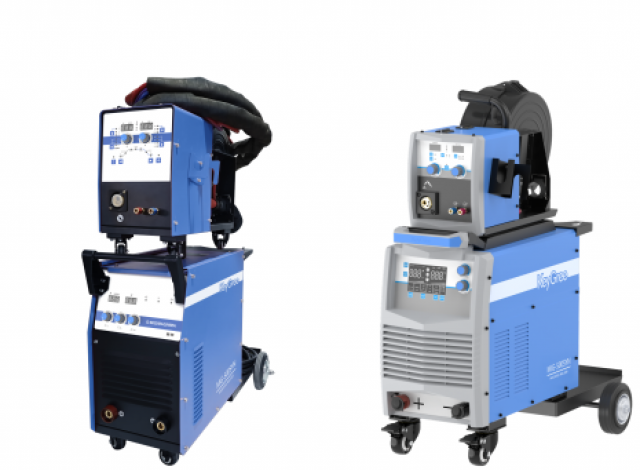

MIG-500SYN: 500A Synergic Industrial MIG Welder with 100% Duty Cycle

(Isstories Editorial):- Wenzhou, Zhejiang Apr 14, 2026 (Issuewire.com) – Introduction: A Global Solution for Industrial Welding

KEYGREE GROUP CO., LTD. is proud to introduce the MIG-500SYN – a 500A synergic industrial MIG welder designed for professionals who demand uncompromising performance, precision, and reliability. With an annual production capacity of 700,000 welding units, Keygree has established itself as a trusted manufacturing partner to industries across Asia, Europe, the Americas, Africa, and the Middle East.

The MIG-500SYN represents the culmination of decades of engineering expertise. It is built to excel in the world’s most challenging environments – from the freezing temperatures of Siberian pipeline projects to the humid coastal shipyards of Southeast Asia, from high-altitude mining operations in the Andes to desert fabrication shops in the Gulf.

More on Isstories:

• MIG-500SYN: 500A Synergic Industrial MIG Welder with 100% Duty Cycle
• Characteristics Of A Highly Cost-Effective PE Fitting Provider By CHUANGRONG
• How To Identify A High-Quality HDPE Fitting Manufacturer For Large-Scale Infrastructure Projects
• CHUANGRONG: A Comprehensive China One-Stop Supplier And Solution Provider For HDPE Pipe Systems
• Why Wholesale High-Density Polyethylene (HDPE) Pipe Supplier CHUANGRONG Stands Out In The Industry

Certified to international standards: CE, ISO, BSCI, FCCA (CNAS pending)

Key Selling Points – Unmatched Performance1. Industrial-Grade Power with 100% Duty Cycle

Continuous heavy-duty welding without interruption — even in high-ambient-temperature environments. No thermal shutdown, no waiting.

Ideal for: automated production lines, pressure vessel fabrication, structural steel welding.

2. Fully Digital Wire Feeder with Comprehensive Parameter Control

The MIG-500SYN puts total control at the operator’s fingertips:

Parameter

Function

ARC Start (A)

Adjust the initial current for reliable arc ignition and root penetration

Welding Current (A)

Main welding current control

End Arc (A)

Crater fill current to prevent shrinkage cracks

Pre Gas (S)

Pre-flow time for gas shielding before arc start

Gas Delay (S)

Post-flow time to protect the hot weld pool

Slope Up (S)

Gradual current increase for smooth arc start

Burn Back (S)

Wire retraction time to prevent sticking

3. Multiple Torch Modes for Every Application

• 2T: Standard trigger operation
• 4T: Press once to start, press again to stop – ideal for long seams
• S4T: Special 4T mode with adjustable settings
• SPOT: Precision spot welding mode with accurately controlled timing

 4. Four Welding Modes — One Machine, Unlimited Applications

Mode

Application

Synergic MIG/MAG

Oneknob simplicity – automatically matches voltage and wire feed speed

Separate MIG/MAG

Manual adjustment for experienced welders

Manual Metal Arc (MMA)

Outdoor repairs, field work — no gas required

Lift TIG

Stainless steel, precision work — arc initiation without HF

 5. Wide Material Compatibility

• Wire diameter selection: 0.8 / 1.2 / 1.4 / 1.6 mm
• Gas type selection: MAG (Mixed Gas) / MIG (CO) / FLUX (Self-shielded)

 6. Built for Global Operating Conditions

• Wide voltage input (±15%)– adapts to unstable grid conditions worldwide
• IP21Singress protection – dustproof and water-resistant
• Conformalcoated PCBs– protection against humidity and salt spray
• Operating temperature range: -20°C to +50°C

Global Service Capabilities Service Coverage

WENZHOU KEYGREE ELECTRIC CO., LTD. provides comprehensive after-sales support through a growing network of authorized service centers and distributors:

Region

Service Coverage

Asia Pacific

China, India, Indonesia, Vietnam, Thailand, Malaysia, Philippines, Singapore, South Korea, Japan, Australia, New Zealand

Middle East & Africa

UAE, Saudi Arabia, Kuwait, Qatar, Oman, Bahrain, Egypt, South Africa, Nigeria, Kenya, Algeria, Morocco

Europe

Germany, France, Italy, Spain, Poland, Russia, Turkey, UK, Netherlands, Belgium, Romania, Czech Republic

Americas

USA, Canada, Mexico, Brazil, Argentina, Chile, Colombia, Peru, Ecuador

CIS Countries

Kazakhstan, Uzbekistan, Azerbaijan, Belarus, Ukraine

 Service Commitments

• 48-hour spare parts dispatch to major ports worldwide
• 12-month comprehensive warranty(extended terms available for fleet purchases)
• Remote technical support in English, Spanish, Russian, Arabic, and Chinese
• On-site training and commissioning available through local partners
• Digital troubleshooting library accessible 24/7 via QR code

 Global Applications – Real-World Case Studies

*We have structured our case studies around the “Customer + Challenge + Solution + Result” framework to demonstrate how the MIG-500SYN performs in real-world conditions across continents.*

 Case Study 1: European Pressure Vessel Manufacturer – Continuous Production

Customer: Tier-1 pressure vessel manufacturer in Germany, supplying the chemical industry

Challenge: Required a welding power source capable of continuous 8-hour production shifts, welding 25mm boiler plate (P265GH) without thermal shutdown. Needed to maintain EN 13445 compliance with full parameter traceability.

Solution:

• The MIG-500SYN’s100% duty cycle @500A enabled uninterrupted welding throughout the shift.
• Synergic mode with stored WPS parameters ensured consistent quality across all operators.
• Digital parameter adjustment allowed precise control of heat input for mechanical property optimization.

Result: The manufacturer increased daily output by 35% and passed TÜV audit with zero non-conformances. 15 units now operate in their facility.

Case Study 2: Southeast Asian Shipyard – High-Humidity Environment

Customer: Major shipbuilding and repair yard in Batam, Indonesia

Challenge: Welding DH36 high-strength steel for vessel hulls in a tropical marine environment with 85-95% humidity and frequent rain. Required reliable arc performance and corrosion-resistant equipment.

Solution:

• Conformal-coated PCBs and IP21S-rated enclosures protected internal components from moisture.
• Lift TIG mode enabled precision welding of stainless steel piping systems.
• 4T torch mode reduced operator fatigue during long hull seams.
• FLUX mode allowed gasless welding during outdoor repairs in windy conditions.

Result: After 12 months of operation, the shipyard reported zero equipment failures and ordered an additional 25 units for their expansion yard.

Case Study 3: North American Structural Steel Fabricator – High-Productivity Demands

Customer: Structural steel fabricator i Houston, Texas, supplying oil and gas infrastructure

Challenge: Needed to increase welding speed on heavy I-beam columns and trusses while maintaining AWS D1.1 quality. Required a machine that could handle 1.6mm flux-cored wire at high deposition rates.

Solution:

• The MIG-500SYN delivered stable arc performance with 1.6mm flux-cored wire at 350-450A.
• Burn Back adjustment eliminated wire sticking at the end of welds, reducing rework.
• Spot mode enabled precise tacking of complex assemblies before final welding.

Result: The fabricator achieved a 40% increase in deposition rate and reduced post-weld grinding by 60%.

 Case Study 4: South American Mining Contractor – High-Altitude Operation

Customer: Mining contractor in the Peruvian Andes (4,200m above sea level)

Challenge: Welding wear plates on mining trucks and excavator buckets in low-oxygen conditions with temperature fluctuations from -5°C at night to +25°C during the day. Required reliable arc starting and stable performance.

Solution:

• The MIG-500SYN’s advanced inverter technology maintained a stable output despite thin air and voltage fluctuations.
• ARC Start adjustment ensured reliable ignition even with long cables.
• MMA mode with Arc Force control provided excellent performance for hardfacing electrodes.

Result: The contractor reduced equipment downtime by 70% and now standardizes on Keygree for all site maintenance.

  Case Study 5: Middle East Oil Field Services – Desert Operations

Customer: Oil field services company operating in the Rub’ al Khali (Empty Quarter), Saudi Arabia

Challenge: Welding pipeline repairs and structural modifications in extreme heat (50°C+) with frequent sandstorms. Required a machine that could withstand sand ingress and maintain performance.

Solution:

• IP21 rating and sealed wire feeder prevented sand damage.
• Enhanced cooling system maintained stable operation at 500A in 50°C ambient temperatures.
• Flux-cored mode eliminated gas shielding issues in high winds.

Result: After 18 months of continuous operation, the company reported zero sand-related failures and has standardized its fleet on Keygree equipment.

  Case Study 6: African Infrastructure Project – Remote Location Support

Customer: Chinese EPC contractor building a hydroelectric dam in the Democratic Republic of Congo

Challenge: Needed welding equipment that could be serviced remotely and repaired with minimal technical support due to the remote location. Required robust machines capable of welding structural steel, penstocks, and gates.

Solution:

• Keygree provided comprehensive digital documentation and video troubleshooting guides.
• Modular design simplified field repairs – critical spare parts were prepositioned.
• Multi-voltage input allowed operation from various generator supplies.

Result: The contractor completed the project on schedule with 98% equipment uptime. Keygree’s remote support team resolved all technical queries within 24 hours.

  Technical Specifications

Parameter

Specification

Model

MIG-500SYN

Rated Output Current

500A @ 100% duty cycle (40°C ambient)

Output Current Range

50A – 500A

Wire Diameter

0.8 / 1.2 / 1.4 / 1.6 mm

Gas Type

MAG (Mixed Gas) / MIG (CO) / FLUX (Self-shielded)

Welding Modes

Synergic MIG/MAG, Separate MIG/MAG, MMA, Lift TIG

Torch Modes

2T, 4T, S4T, SPOT

Adjustable Parameters

ARC Start, Welding Current, End Arc, Pre Gas, Gas Delay, Slope Up, Burn Back

Input Voltage

3-phase 220V/380V/440V ±15% (factory configurable)

Protection Rating

IP21S

Insulation Class

F

Cooling Method

Forced air with an enhanced heat sink

Operating Temperature

-20°C to +50°C

Dimensions (L–W–H)

885*500*824

Weight

78.6

 Certifications & Compliance – Meeting Global Standards

Certification / Standard

Scope

CE

Mandatory for the European Union market – compliance with EMC and Low Voltage Directives

ISO 9001

Quality management system certification

BSCI

Business Social Compliance Initiative – ethical manufacturing practices

FCCA

Foreign Corrupt Practices Act compliance for international trade

CNAS

China National Accreditation Service (in planning) – will enable ISO/IEC 17025 laboratory accreditation

Industry Standards Compliance

Our equipment is designed to meet the requirements of major international welding standards:

• ISO 5817 / AWS D1.1– Fusion welding quality
• EN 1090– Execution of steel structures (CE marking for construction products)
• ASME Section IX– Boiler and Pressure Vessel Code
• API 6A / 7-2– Oil and gas equipment

 Why Choose WENZHOU KEYGREE ELECTRIC CO., LTD.?1. Manufacturing Scale and Capacity

• 700,000 units annual production capacity– ensuring consistent quality, competitive pricing, and reliable supply
• Vertically integrated manufacturing with in-house PCB assembly, transformer winding, and final assembly lines
• Rigorous quality control– 100% factory testing before shipment

 2. Engineering Excellence

• R&D team of 45+ engineers focused on inverter technology and digital control systems
• Continuous innovation– our 4th-generation digital platform delivers industry-leading arc performance
• Customization available– OEM/ODM solutions for global partners

 3. Global Certifications and Compliance

• Full certification package for hassle-free customs clearance in over 60 countries
• Technical documentation available in multiple languages
• Support for local certification applications (GCC, SASO, EAC, UL, etc.)

 4. Proven Track Record

• Exporting to more than 80 countries across six continents
• Hundreds of thousands of units are operating successfully worldwide
• Long-term partnerships with major industrial companies and government projects

Ready to Enhance Your Welding Operations?

Request a technical datasheet

Schedule a virtual demo

Inquire about OEM/distributor partnerships

Contact KEYGREE: www.keygree.com | Response within 24 hours

KEYGREE GROUP CO., LTD.

Powering Global Industry – One Weld at a Time

*Specifications subject to change without notice. Certifications may vary by model and destination. For specific application requirements, please consult KEYGREE technical support.*

Source :Keygree Group Co., Ltd.
