Powering the Future of Flight: FR4PCB’s Comprehensive UAV Chipset Solutions
Rapidly evolving landscape of Unmanned Aerial Vehicle (UAV) technology, high-performance hardware architecture is the cornerstone of stable flight, precision obstacle avoidance, and extended endurance. As a leading provider of UAV components, FR4PCB is dedicated to delivering full-stack chipset solutions–from flight control and inertial navigation to communication links.
More on Isstories:
- FR4PCB Comprehensive UAV Chipset Solutions
- Jinwei: Your Strategic Partner and China Top Heating Element Manufacturer
- Reuse Medical EquipmentExpands Affordable Used Medical Equipment Supply for Technicians and Resellers Nationwide
- Author Tess Hulack Launches “Courage to Change” – 3-Day Virtual Wealth Training Starting March 26
- 13-Year-Old Artist Mackenzie Reff Releases Powerful Anti-War Anthem “Dreams Don’t Belong to War”
Part Number
Quantity
Package
Manufacturer / Brand
Description & Application
FG-120H
5,000
Module
Beijing Tianjian Jiejia
Navigation-grade single-axis FOG (Fiber Optic Gyro); Zero-bias stability 0.001°/h. Suitable for missiles and strategic nuclear submarine navigation systems.
FG-30
10,000
Module
Beijing Tianjian Jiejia
Tactical-grade single-axis FOG; Size 60–35–31mm, Weight 120g. Suitable for tactical missiles and precision-guided weapons.
25,000
SOP-8
Micro-Epoch
All-digital output MEMS gyroscope; High shock resistance (15000g). Suitable for small missiles and guided artillery shells.
22,000
LGA14
Bosch
6-axis inertial measurement unit (IMU); Shock resistance 20000g. Suitable for UAVs and tactical guidance.
50,000
LGA8
Bosch
High-precision barometric pressure sensor; Altitude measurement accuracy ±1m. Suitable for UAV altitude control.
25,000
LQFP64
STMicroelectronics
High-performance ARM Cortex-M7 MCU; 216MHz. Suitable for weapon fire control systems.
18,000
LQFP64
STMicroelectronics
ARM Cortex-M4 MCU; 168MHz with DSP support. Suitable for UAV flight controllers.
AT32F435RGT7
13,000
LQFP64
ArteryTek
STM32-compatible ARM Cortex-M4 MCU; 180MHz. Suitable for industrial/military electronic equipment.
SX1276IMLTRT
32,000
QFN28
Semtech
LoRa RF chip; 15km transmission range. Suitable for long-range UAVs and IoT sensors.
SX1278IMLTRT
35,000
QFN28
Semtech
LoRa RF chip; Spread spectrum modulation with high anti-interference. Suitable for battlefield communication systems.
LR1121IMLTRT
17,000
QFN32
Semtech
Multi-band RF chip; Supports LoRa/GPS. Suitable for UAV navigation and communication.
ICM-20690
60,000
16-pin LGA
TDK InvenSense
6-axis MEMS IMU; Shock resistance 10000g. Suitable for UAVs and missile stabilization systems.
ICM-42688-P
43,059
QFN24
TDK InvenSense
6-axis MEMS IMU; Ultra-low noise design. Suitable for high-precision guided weapons.
MPU6000
100,000
QFN-24
TDK InvenSense
6-axis MEMS IMU; Widely used in UAVs, missiles, and robotics.
FD6288Q
28,000
TSSOP-20
Fortior Tech
3-phase BLDC motor gate driver. Suitable for UAVs and robot power systems.
NTMFS5C430NLT1G
100,000
DFN5X6
onsemi
N-Channel MOSFET; Low on-resistance. Suitable for UAV ESCs (Electronic Speed Controllers).
SE5004L-R
21,000
QFN20
SKYWORKS
RF Amplifier; Operating frequency 9kHz-6GHz. Suitable for radar and communication systems.
ICM-42688
126,199
14-pin LGA
TDK InvenSense
High-performance 6-axis IMU with FIFO buffer; Supports wake-on-motion. Suitable for wearable devices and smart homes.
ICM-42688-A
15,000
14-pin LGA
TDK InvenSense
Industrial-grade version of ICM-42688; Temp range -40°C~105°C. Suitable for industrial automation.
ICM-42605
30,000
14-pin LGA
TDK InvenSense
Low-power 6-axis MotionTracking device. Suitable for wearables and smart home tech.
ICM-42638
85,000
14-pin LGA
TDK InvenSense
Low-power 6-axis IMU with I3C interface and APEX motion engine. Suitable for UAVs and robotics.
ICM-20689
50,000
16-pin LGA
TDK InvenSense
6-axis IMU with pressure sensor interface; Supports altitude measurement. Suitable for UAVs and smartwatches.
TDKZSSC3123
20,000
SOIC-8
TDK
Digital temperature sensor; ±0.5°C accuracy. Suitable for industrial control and medical equipment.
ITG-3050
15,000
QFN-24
TDK InvenSense
3-axis MEMS gyroscope; Ultra-low noise with internal temp sensor. Suitable for consumer electronics and UAVs.
ICM-42670-P
30,000
14-pin LGA
TDK InvenSense
Low-power 6-axis IMU; Supports I3C interface with internal FIFO. Suitable for wearables and IoT.
ICM-40627
25,000
14-pin LGA
TDK InvenSense
6-axis IMU; Integrated 3-axis gyro + 3-axis accel; Low power design. Suitable for UAVs and robotics.
ICM-42607
40,000
14-pin LGA
TDK InvenSense
Low-power 6-axis IMU with I3C and APEX engine. Suitable for smart homes and industrial automation.
IM-20670
18,000
14-pin LGA
TDK InvenSense
6-axis IMU; High resolution with internal FIFO and motion wake-up. Suitable for smartphones and UAVs.
ICM-42688-V
89,000
14-pin LGA
TDK InvenSense
6-axis IMU; I3C/I2C/SPI support; Temp -40°C~105°C; Shock resistance 20000g.
- FR4PCB: Your Trusted Partner in UAV Core Hardware
FR4PCB is more than just a component distributor; we are deep technical participants in the UAV industry. We understand the rigorous demands for stability in extreme environments. Therefore, we have established a strict screening system to ensure that every chip leaving our facility–such as the FG-120H and FG-30–possesses exceptional reliability and environmental adaptability.
With a robust supply chain and a dedicated technical support team, we provide closed-loop services ranging from PCB design consultation to critical component selection.
- Core Solutions and Product Portfolio
- High-Performance Flight Control Centers (MCU)
The flight control system is the “brain” of the drone. We provide top-tier processors based on ARM® Cortex®-M4/M7 cores to meet varying computational complexities:
- The Industry StandardSTM32F405RET6 remains the “Golden Standard” for racing and industrial drones.
- Extreme Computing Power: For missions requiring real-time image processing or complex trajectory planning, the STM32F722RET6 and AT32F435RGT7 offer superior calculation efficiency and ultra-low task latency.
- Precision Inertial Navigation (IMU & Sensors)
Stable attitude control relies on accurate sensor data. FR4PCB offers a full range of Inertial Measurement Units (IMU) from consumer to industrial grades:
- Classic Stability: Time-tested models like the MPU6000, ICM-20689, and ICM-20690 are still the top choices for classic airframes due to their low quadrature error and excellent vibration rejection.
- Next-Gen Precision: We highlight the ICM-42688 series (including ICM-42688-P, ICM-42688-A, and ICM-42688-V), alongside the ICM-42605 and ICM-42607. These chips feature ultra-low noise density and, when paired with the BMI270, achieve the ultimate in motion sensing.
- Altitude & Pressure Control: Integrated with the BMP280 barometer and the TDKZSSC3123 signal conditioning chip, drones can achieve centimeter-level hovering precision.
- Specialized Applications: For diverse mission requirements, we also stock the ICM-42638, ICM-42670-P, ICM-40627, and ITG-3050 sensor solutions.
- Robust Power and Energy Management

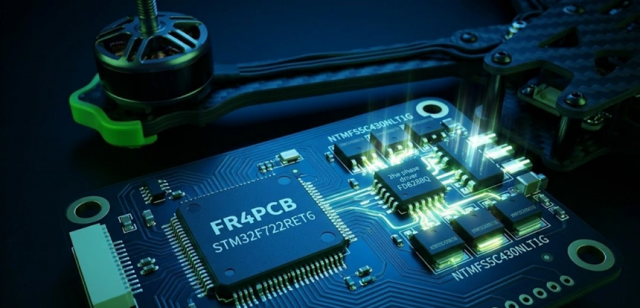

- Drive Management: The FD6288Q 3-phase gate driver, combined with the high-performance NTMFS5C430NLT1G power MOSFET, ensures precise motor output and power redundancy in high-wind conditions.
- Sensor Fusion: The MUG22-1S and IM-20670 excel in complex energy monitoring and modular data acquisition.
- Long-Range Communication & RF Links
In Beyond Visual Line of Sight (BVLOS) operations, signal integrity is paramount:
- LoRa Technology: Utilizing SX1276IMLTRT, SX1278IMLTRT, and the latest LR1121IMLTRT solutions, we significantly extend data transmission distances in complex urban or remote mountainous areas.
- Signal Enhancement: The SE5004L-R front-end amplifier ensures signal penetration even in high-interference environments.
- Target Application Scenarios
FR4PCB’s chipset solutions are widely deployed across various sectors:
- Agricultural Protection: Leveraging the reliability of the FG-120H module to support 24/7 high-intensity operations in crop spraying and monitoring.
- Cinematography: Relying on the stability of the ICM-42688-P to provide ultra-smooth gimbal stabilization for 4K/8K video capture.
- Power Line Inspection: Utilizing the high-performance computing of the AT32F435RGT7 for automated obstacle avoidance and precision inspection.
- Logistics & Delivery: Combining the cost-effective FG-30 and MUG22-1S solutions with SX1276 long-range communication to lower the deployment costs of urban delivery fleets.
- Why Choose FR4PCB?
In the UAV industry, the quality of a single chip can determine the safety of the entire aircraft. FR4PCB is committed to:
- Guaranteed Original Components: All models (e.g., MPU6000, ICM-20690) are sourced from original manufacturers or authorized channels.
- Deep Technical Customization: We don’t just sell chips; we understand how to maximize their performance on your PCB.
- Rapid Supply Chain Response: We maintain strong global sourcing capabilities for high-demand or hard-to-find components.
Contact Us: If you are looking for high-performance UAV hardware cores or seeking optimization for your circuit designs, visit us at https://www. fr4pcb.com
