Thread Knowledge 101: The Science Behind a Perfect Screw Thread

(Isstories Editorial):- Zhejiang, China Dec 22, 2025 (Issuewire.com) – Key Takeaways

• A perfect screw thread has exact measurements for its shape, spacing, and angle. This makes sure parts connect strongly and safely.
• Many things make a screw thread work well. These include how it shares weight, how much friction it has, and the materials it is made from.
• Making perfect screw threads needs careful work. This includes special ways to make them, exact tools to measure them, and checks to fix any mistakes.

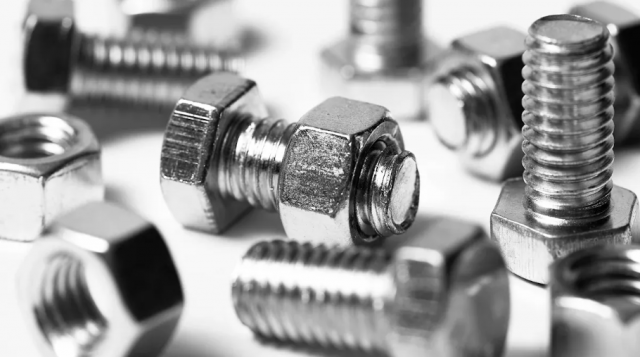

The Fundamental Anatomy of a Perfect Screw Thread

Understanding the parts of a screw thread is essential. Each component plays a role in its function. Engineers design these parts with great care. This ensures the thread performs its job correctly.

More on Isstories:

• Thread Knowledge 101: The Science Behind a Perfect Screw Thread
• Willman Machinery: China Top Seaming Machine Manufacturer
• YAWEI: China Advanced Electrical Transformer Solutions Provider Featured at PowerGen Asia
• Tibet Group tours by Tenzin Travel and Tours
• 9sexy: A China Leading Electric Massagers Manufacturer Empowering Global B2B Partners

Key Terminology for Screw Threads

Several terms describe a screw thread. The major diameter is the largest diameter of the thread. It measures from crest to crest. The minor diameter is the smallest diameter. It measures from root to root. The pitch diameter sits between these two. It is an imaginary diameter where the thread thickness equals the space between threads. The crest is the top surface of the thread. The root is the bottom surface. Flanks are the angled sides connecting the crest and root.

Understanding Screw Thread Forms

Screw threads come in various shapes, called forms. Each form suits different applications. V-threads, like Unified or Metric threads, are very common for fasteners. They have a sharp, V-shaped profile. Acme threads feature a trapezoidal shape. They are strong and often used for power transmission, such as in lead screws. Square threads have a square profile. They offer high efficiency for moving heavy loads.

Pitch and Lead in Screw Threads

Pitch is a crucial measurement. It is the distance from one point on a thread to the same point on the next thread. People measure pitch parallel to the thread axis. Lead is the distance a screw advances in one complete rotation. For most single-start threads, the pitch and lead are the same. Multi-start threads have a lead that is a multiple of the pitch.

The Science of Screw Thread Engagement

A screw thread‘s true strength comes from how it engages with its mating part. This engagement involves complex physics. It ensures the connection holds under various forces. Engineers carefully consider these factors. They design for maximum reliability.

Mechanics of Load Distribution in Screw Threads

When people tighten a bolt, the load does not spread evenly across all engaged threads. The first few threads near the nut or bolt head carry most of the force. This happens because of elastic deformation. The bolt stretches, and the nut compresses. This uneven distribution means the first threads experience higher stress. Engineers design threads to manage this stress. They ensure enough threads engage to safely hold the load. A longer engagement length helps distribute the load better. It reduces stress on individual threads. This prevents thread stripping or failure.

The Role of Friction in Screw Thread Performance

Friction is very important for a secure threaded connection. It prevents the fastener from loosening. When people tighten a bolt, friction occurs in two main places. First, friction happens between the mating threads. Second, friction occurs under the bolt head or nut face. This friction creates resistance. It resists the turning motion. A high friction coefficient means more torque is needed to tighten the fastener. It also means the fastener resists loosening forces better. Lubricants reduce friction. They allow for more clamping force with the same tightening torque. However, too little friction can lead to self-loosening. Too much friction can cause galling or seizing.

Material Interaction for Optimal Screw Threads

The materials of the bolt and the part it screws into greatly affect performance. Engineers choose materials based on strength, hardness, and corrosion resistance. If the bolt material is much harder than the nut material, the bolt can strip the nut’s threads. If both materials are too soft, they can deform under load. Different metals can also react with each other. This reaction is called galvanic corrosion. It weakens the connection over time. Sometimes, similar materials can “cold weld” together. This is called galling. Galling makes it impossible to loosen the fastener without damage. Proper material selection prevents these issues. It ensures a strong and durable screw thread connection. For example, stainless steel fasteners often require lubrication to prevent galling.

Precision Engineering for Perfect Screw Threads

Achieving a perfect screw thread requires careful engineering. It involves precise manufacturing, advanced measurement, and strict quality control. These steps ensure the thread meets exact specifications.

Manufacturing Processes for Screw Threads

Manufacturers use several methods to create a perfect screw thread. Each method offers specific advantages.

• Thread Rolling: This is a common and efficient method. Machines press dies onto a blank rod. The dies form the threads without removing material. This process strengthens the material. It also creates a smooth surface finish. Rolled threads are often stronger than cut threads.
• Thread Cutting: Lathes, taps, and dies cut threads into material. A cutting tool removes material to form the thread profile. This method works well for internal threads (taps) and external threads (dies or lathes). It offers flexibility for different materials and thread forms.
• Thread Grinding: Grinding provides very high precision. A grinding wheel shapes the threads. Manufacturers use this method for hardened materials or when extreme accuracy is necessary. It produces threads with excellent surface finish and tight tolerances.
• Thread Milling: Milling machines use rotating cutters to create threads. This method is versatile. It can produce large threads or threads on complex parts. It offers good control over thread geometry.

Advanced Measurement of Screw Threads

Precise measurement tools ensure thread accuracy. These tools check every aspect of the thread.

• Optical Comparators: These machines project a magnified image of the screw thread onto a screen. Operators compare the image to a master outline. This helps check the thread’s profile, pitch, and angle.
• Thread Gages: Go/No-Go gages are simple and fast. A “Go” gauge must fit the thread. A “No-Go” gauge must not fit. This checks if the thread falls within acceptable limits.
• Coordinate Measuring Machines (CMMs): CMMs use probes to touch thousands of points on the thread surface. They create a 3D model. This provides highly accurate data on all thread dimensions.
• Laser Scanning: Laser scanners use light to capture the thread’s shape. They offer non-contact measurement. This is useful for delicate parts or complex geometries. It provides detailed profile data quickly.
• Microscopes: Specialized microscopes measure very small threads. They provide high magnification for detailed inspection of thread features.

Quality Control and Error Correction for Screw Threads

Quality control ensures consistent thread production. It identifies and corrects errors early.

• In-Process Inspection: Technicians check threads during manufacturing. They use gauges and other tools. This prevents large batches of defective parts.
• Statistical Process Control (SPC): SPC uses data to monitor manufacturing processes. It tracks variations in thread dimensions. This helps predict potential problems before they occur.
• Feedback Loops: Measurement data feeds back into the manufacturing process. If threads are drifting out of tolerance, machines adjust automatically. This maintains consistent quality.
• Non-Destructive Testing (NDT): NDT methods, like eddy current or ultrasonic testing, find internal flaws. They do not damage the part. This ensures the thread’s structural integrity.
• Corrective Actions: When errors occur, engineers investigate the cause. They implement changes to the process or equipment. This prevents the same errors from happening again. This continuous improvement ensures high-quality screw threads.

Common Imperfections in Screw Threads and Their Impact

Even small flaws in a screw thread can compromise its performance. These imperfections often lead to significant issues in assembled products. Understanding these deviations helps engineers prevent failures.

Types of Screw Thread Deviations

Several types of errors can occur in a screw thread. A pitch error means the distance between adjacent threads is incorrect. An angle error refers to an inaccurate flank angle. This changes how the threads engage. Form errors alter the thread’s profile. For instance, crests might be too rounded or roots too shallow. Lead error affects how much the thread advances with each turn. Surface roughness makes the thread surface uneven. This increases friction and wear. Out-of-roundness means the thread is not perfectly circular. These deviations can happen during manufacturing.

Consequences of Imperfect Screw Threads

Imperfect threads have serious consequences. They significantly reduce the strength of a connection. Fasteners can loosen unexpectedly, leading to equipment failure. Threads may strip under normal operating loads. Galling, a form of cold welding, can make disassembly impossible. The fatigue life of the component also decreases. Assembly becomes difficult or impossible. In critical applications, like pressure vessels, imperfect threads can cause dangerous leaks. These issues compromise safety and reliability.

Preventing Failures in Screw Threads

Preventing thread failures requires a multi-faceted approach. It begins with precise design. Engineers must select appropriate materials and thread forms for the application. High-quality manufacturing processes are crucial. These processes ensure accurate thread geometry. Strict quality control measures inspect threads for any deviations. Proper assembly techniques are also vital. This includes using the correct tightening torque and suitable lubrication. Regular maintenance helps detect potential problems before they escalate. These combined efforts ensure the integrity and longevity of threaded connections.

Applications of Perfect Screw Threads

Perfect screw threads play a vital role across many industries. Their precision ensures safety, reliability, and optimal performance. Engineers rely on these threads for critical connections in diverse products.

Critical Uses in Aerospace and Automotive

Aerospace and automotive industries demand flawless screw threads. Aircraft engines use precise threads. They secure components under extreme stress and vibration. A single thread imperfection could lead to catastrophic failure. Car manufacturers also depend on perfect threads. They hold together critical parts like brake systems and steering mechanisms. These threads ensure vehicle safety and passenger protection.

Precision Screw Threads in Medical Devices

Medical devices require exceptional accuracy. Surgeons use instruments with tiny, perfect threads. These threads allow precise adjustments during delicate operations. Implants, such as bone screws, also feature perfect threads. They must integrate seamlessly with the human body. Any deviation could cause discomfort or rejection. The threads ensure patient safety and device functionality.

Everyday Importance of Perfect Screw Threads

Perfect screw threads also impact daily life. They hold together common household items. Furniture, electronics, and appliances all use threaded fasteners. A bicycle’s components rely on precise threads for stability and performance. Even a simple light bulb uses a perfect thread to connect to its socket. These everyday applications show the widespread need for reliable threaded connections.

Perfect screw threads remain essential for countless applications. They ensure safety and reliability across industries. Engineers constantly seek new ways to improve thread design and manufacturing. Future innovations will likely bring even stronger and more efficient threaded connections.

FAQWhat makes a screw thread “perfect”?

A perfect screw thread has exact dimensions. Its form, pitch, and angle are precisely engineered. This ensures strong, reliable connections.

Why do engineers use different thread forms?

Different thread forms suit specific applications. V-threads are common for fasteners. Acme threads transmit power. Square threads move heavy loads efficiently.

How does friction help a screw thread?

Friction prevents fasteners from loosening. It occurs between mating threads and under the bolt head. This resistance keeps the connection secure.
